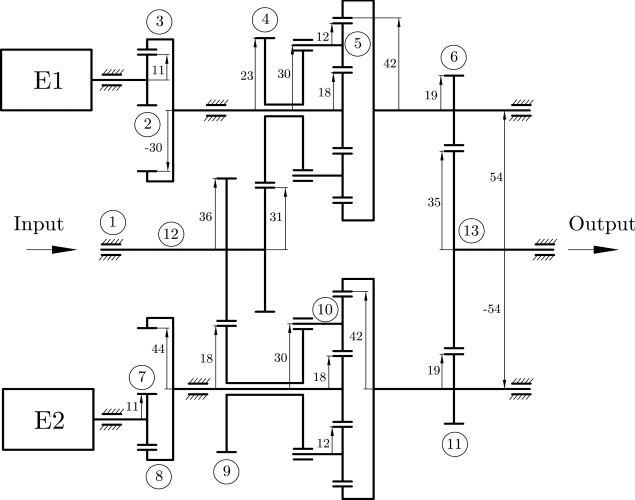

Analysis of Epicyclic Gear Transmissions
An Automatic Power and Efficiency Analysis
Tool
An automatic power and efficiency analysis tool was developed by utilizing
Mathematica programing software. The tool consists of four
modules and use the algorithm based on constraint method. This package is
capable of analyzing arbitrary epicyclic spur gear transmissions with one or
two-dof. The Graphic User Interface (GUI) can display the constraint matrix,
normal internal and external powers, virtual internal and external powers,
efficiency expression and efficiency profile. In addition, normal power flow
and virtual power flow diagrams are integrated in the GUI for power flow
pattern observation.
[
